Description
BestFor those who want power, performance and portability
The sun just broke the horizon, but your day began hours ago—the second you started your trusty
- SOHC
- Large Displacement Engine
- Streamlined Intake Manifold
- Large Volume Air Silencer
- Labyrinth Exhaust
- Water-Cooled Fuel Pump
- Acceleration Pump
- Long Span Mounting System
- Four-Stroke Engine Design

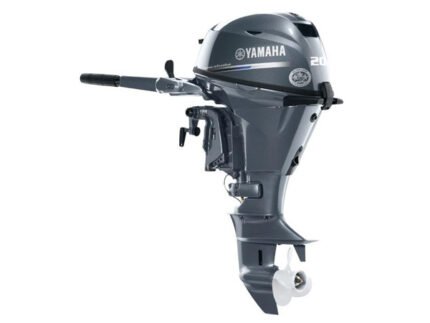

Year: 2017 Manufacturer: Yamaha Marine Model Name: F20 Trim Name: SMHA Generic Type (Primary): Four Stroke Engine Engine Type: 2 Cylinder Engine Power: 20 hp @ 5500 rpm Alternator (Output): 10A ** Displacement: 22.1 ci (362 cc) Gear Ratio (Primary): (27:13) 2.08:1 Lubrication: Wet sump Fuel Type Induction: SOHC Ignition System: CDI Micro Computer Oil Type (Recommended): Yamalube® 4M (See owner’s manual) Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 87) Fuel Type (Recommended Filtration): Yamaha Mini 10-Micron Fuel/Water Separating Filter (external) Steering Angle (Maximum): 45° from center, either direction Capacities Oil capacity 1.8L/1.6L w/without filter Spark Plug Spark Plug DPR6EB-900-000 Range Note Full Throttle RPM Range: 5000-6000 Dimensions Length Shaft: S=15″ Bore 2.48 in. (63 mm) Stroke 2.29 in. (58.1 mm) Weights Dry Weight F20SMHA = 50kg (111 lbs) Features Starter Manual or Electric Features Degree of Tilt: 67°-71° | Degree of Trim: 4 positions Cooling Water/Thermostatic Control Note Ethanol Blend Limit: 10% Maximum Note Gear Shift: Forward, Neutral, Reverse Features C.A.R.B. Rating: 3 Star Intake Design: Carburetor Compression Ratio: 9.3: Note Mounting Centers: 28.6″Warranty
Warranty 3-Year Pleasure (2-year on jet pump assembly), 3-Year Government (2-year on jet pump assembly), 1-Year Commercial (1-year on jet pump assembly)
