For those who want power, performance and portability The sun just broke the horizon, but your day began hours ago—the second you started your trusty Yamaha Portable. Maybe you’re skimming the marsh in a jon boat during duck season, pushing a sailboat ‘til the wind kicks up or hopping to the cuddy on a tender. Wherever the day takes you, these nimble, lightweight, efficient portables are up for the ride. Available in a range of horsepower from the F20, to the F2.5, including the redesigned F8 with 7.5 percent more displacement, these 1- or 2-cylinder dynamos provide big performance in streamlined designs.
- SOHC
- Labyrinth Exhaust
- Long Span Mounting System
- Four Stroke Engine Design
- Tuned Intake Manifold
- Oil Separator
- Streamlined Gearcase
- Dynamic Balancer
- California C.A.R.B. Ultra Low Emissions 3 Star Rating
- Engine Warning System Function
- Thermostatic Controlled Engine Temperature
- Wet Sump Lubrication
- 5-Step Anti-Corrosion Paint Process
- Stainless Steel Driveshaft, Prop Shaft, Shift Shaft and Steering Tube
- CDI Microcomputer

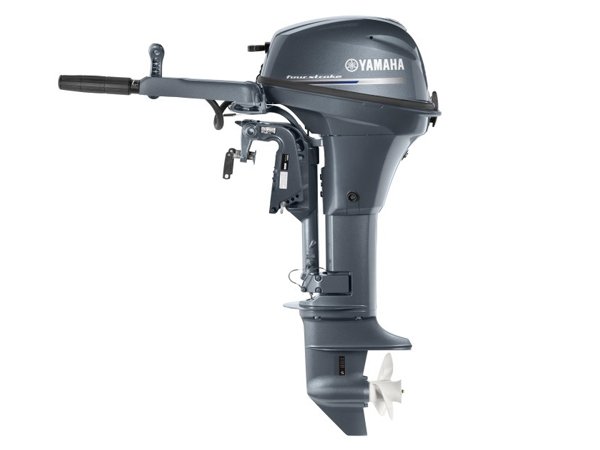

Year 2017 Manufacturer Yamaha Marine Model Name F9.9 Trim Name F9.9SMHB Generic Type (Primary) Four Stroke Engine Engine Type 2 Cylinder Engine Power 9.9 hp @ 5500 rpm Alternator (Output): 6A (requires rectifier/regulator) Displacement 12.9 ci (212 cc) Gear Ratio (Primary) (27:13) 2.08:1 Lubrication Wet sump Fuel Type Induction: SOHC Ignition System: CDI Micro Computer Oil Type (Recommended): Yamalube® 4M (See owner’s manual) Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 87) Fuel Type (Recommended Filtration): Yamaha Mini 10-Micron Fuel/Water Separating Filter (external) Capacities Oil capacity 0.8L (0.85 qt) Spark Plug Spark Plug BR6HS-1000-000 Range Note Full Throttle RPM Range: 5000-6000 Dimensions Length Shaft: S=15″L Bore 2.48 in. (56 mm) Stroke 2.29 in. (43 mm) Weights Dry Weight F9.9SMHB = 39kg (87lbs) Weight Spec: 3 lbs Features Note Mounting Centers: 28.6″ Exhaust Through Propeller Features Degree of Tilt: 71° | Degree of Trim: 4 positions Intake Design Carburetor Cooling Water/Thermostatic Control Note Ethanol Blend Limit: 10% Maximum Steering Angle (Maximun): 43° from center, either direction Note Gear Shift: Forward, Neutral, Reverse Features C.A.R.B. Rating: 3 Star Compression Ratio 9.46:1 Starter Manual or Electric Warranty Warranty 3 Year Limited Pleasure Boat – 1 Year Limited Commercial
