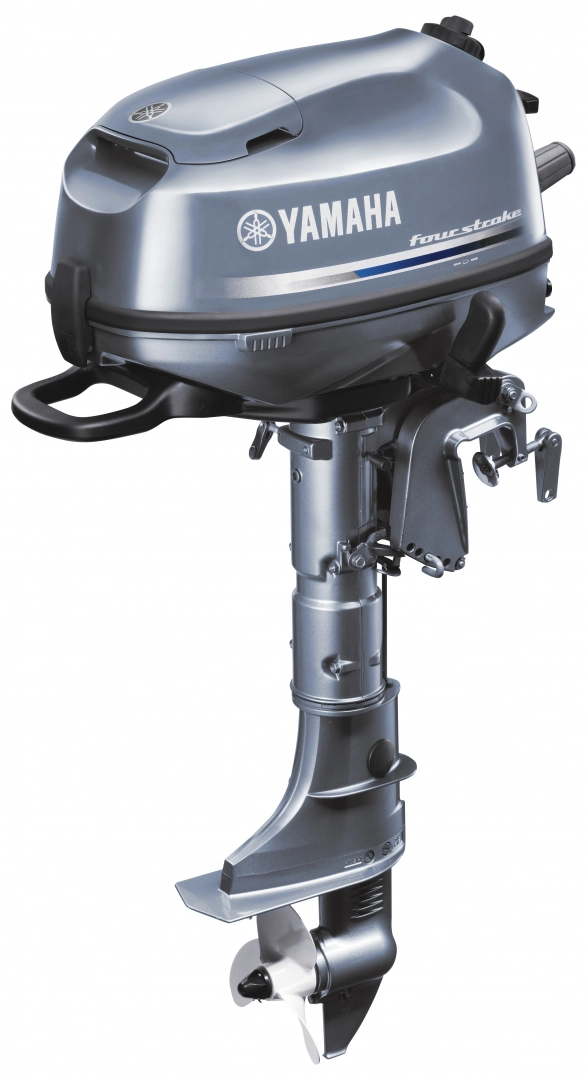

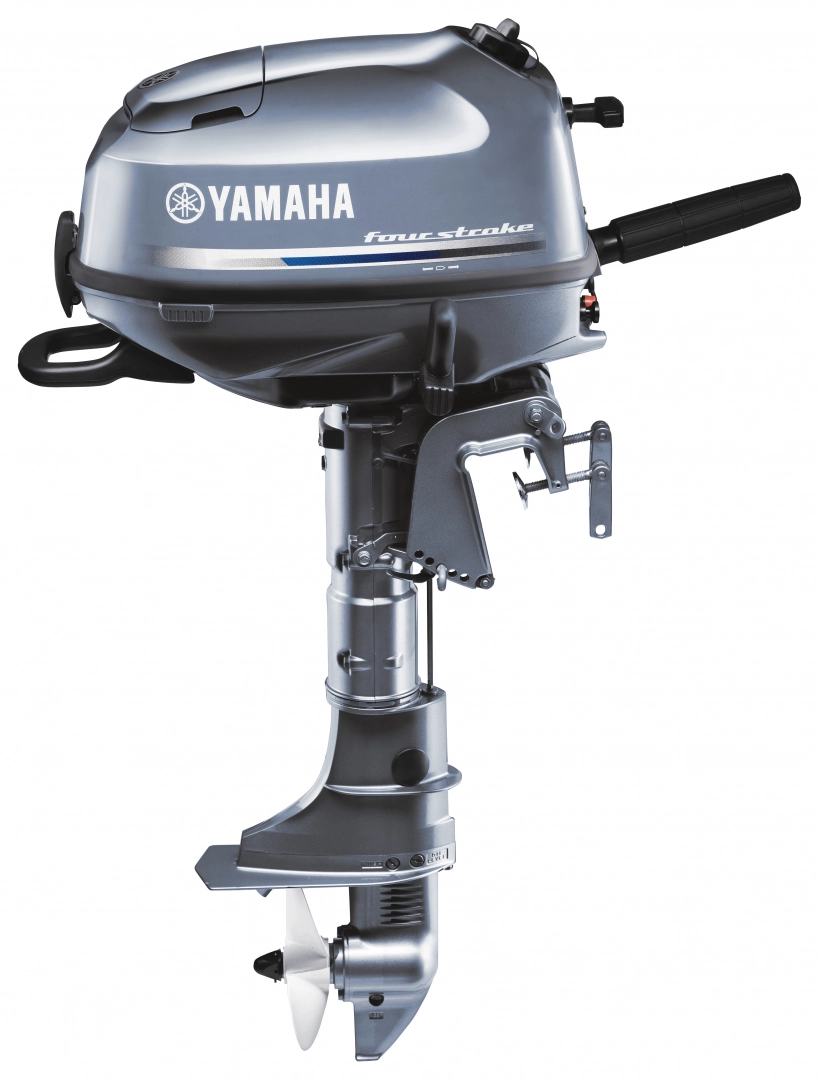

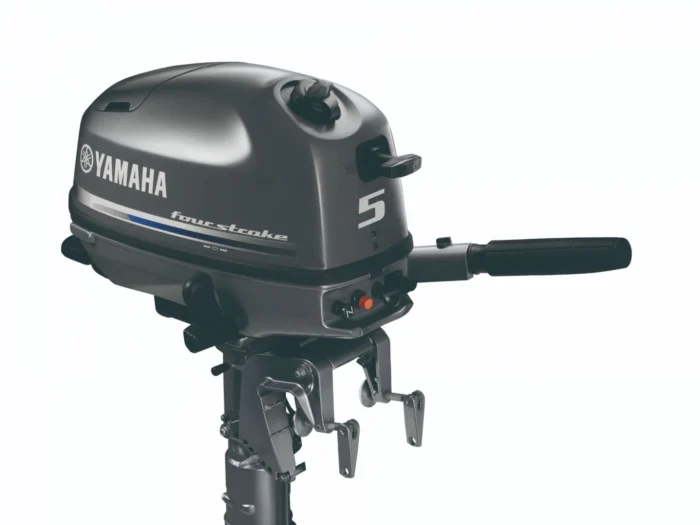

2022 F5SMHA Yamaha 4 Stroke 5hp Short Shaft PORTABLE OUTBOARD

DESCRIPTION

F5SMHA Yamaha Filling a vital horsepower bracket in the Australian market, the all new F5A has been designed to be easy to use and exceptionally smooth running. With a range of exclusive features, increased capacity for greater performance as well as the latest generation cowl design and graphics, the F5A is sure to be a popular addition to Yamaha’s current engine line up. For easy transport and mounting the F5A is fitted with an ergonomically designed grasp on the front of the motor and a large carry handle on the rear. The engine also features Yamaha’s unique oil leak prevention system which allows the owner to store or transport the engine on either side or its front without leaking engine oil. This means worry free transport in a car boot and hassle free storage. Available in:

• F5SMHA – Manual Start, Tiller Handle, Transom height – Standard
• F5LMHA – Manual Start, Tiller Handle, Transom height – Long

General Features:

• 8P Alloy prop
• 1.1L Inbuilt fuel tank
• 5 position tilt
• Spline prop shaft
• Dual fuel line connection for optional remote tank

Specifications
Engine Type	OHV, 1-cylinder
Displacement	139.0 cc
Bore x Stroke	62 x 46 mm
Recommended Max RPM	4500-5500
Lubrication System	Wet sump
Fuel Management	Carb
Ignition	CDI
Starter System	Manual Choke
Alternator Output	12V-6Amp with Rectifier Regulator (optional)
Operation Method	Tiller Handle
Trim & Tilt Method	Manual Tilt
Fuel Tank Capacity	1.1 L
Gear Ratio	2.08:1
Previous model code(s)	F5AMHS

Dimensions
Transom Length	F5SMHA : 440 mm (17.3 in) F5LMHA : 568 mm (22.4 in)
Weight	F5SMHA : 27 kg F5LMHA : 28 kg

CDI-E: CDI-Electronic Automatic CDI-M: CDI-Microcomputer TCI: Transistor Controlled Ignition
