Description

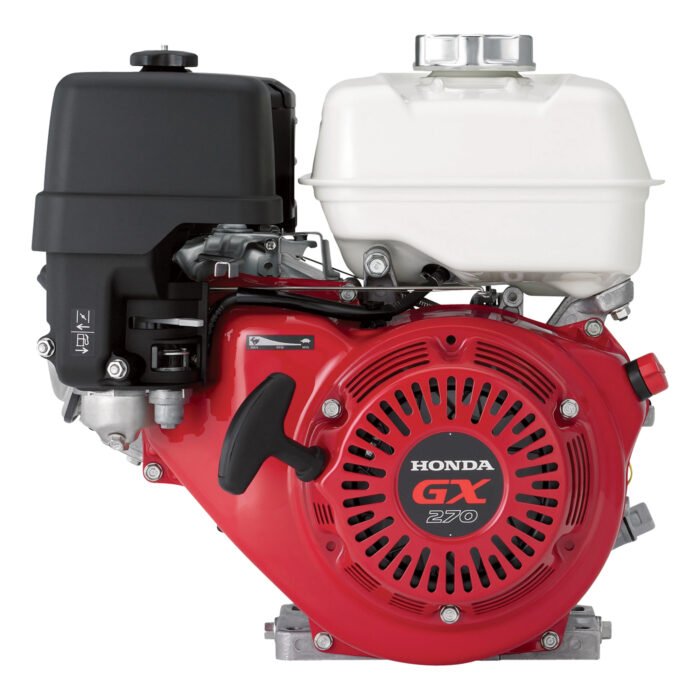

The Honda 270cc GX Series OHV commercial-grade engine is designed for the most demanding commercial applications. It has set an industry standard for reliability and durability. Overhead Valve design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. The GX is reliable, easy starting and quiet running. Meets EPA and CARB emission levels standards. This legendary engine has earned the reputation as the preferred engine for construction equipment. Common application: cement mixers. Not for sale in CA.
What’s Included
- (1) Engine, Model# GX270UT2HA2
Product Manual DimensionsKey Specs
| Item# | 60966 |
| Brand | Honda Engines |
| Manufacturer’s Warranty | 3 year limited warranty |
| Ship Weight | 70.0 lbs |
| Engine Displacement | 270 cc |
| Engine Type | GX Series OHV commercial-duty |
| Net Power Output | 8.5 HP |
| Start Type | Recoil |
| Shaft Diameter | 1 in |
| Shaft Length | 3.23 in |
| Net Torque | 14.1 ft-lbs. |
| Shaft Output | Horizontal |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Crankshaft | H-type |
| PTO Height | 5.25 in |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron |
| Compression Ratio | 8.5:1 |
| Cooling System | Air cooled |
| Bore | 3 in |
| Stroke | 2.3 in |
| Air Cleaner Type | Dual element |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 5.6 qt |
| Fuel Filter | Fuel tank filler neck strainer |
| Oil Capacity | 1.16 qt |
| Lubrication System | Splash |
| Ignition System | Electronic |
| Governor System | Centrifugal mechanical |
| Carburetor | Float, external vent |
| Throttle Control | Manual |
| Choke Control | Manual |
| Max. RPM | 3,600 |
| CARB Approval | Yes |
| Bolt Circle | 5, 6.5 in |
| Mounting Base Length | 7.68 in |
| Mounting Base Width | 3.18 to 3.68 in |
| Dimensions L x W x H (in.) | 15 x 16.87 x 16.12 in |
