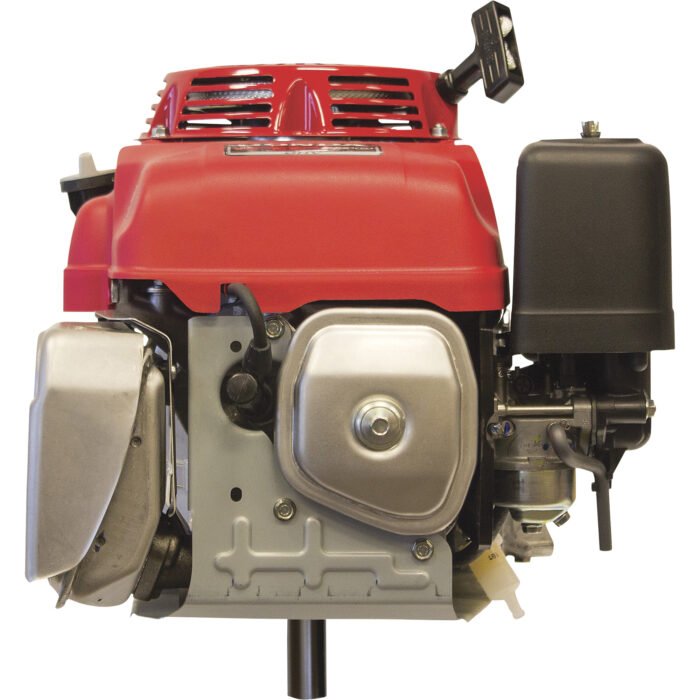

Honda Vertical OHV Engine — 389cc, GXV Series, 1in. x 3.11in. Shaft, Model# GXV390RT1DA33
538.00$
Compare Description
The Honda Vertical OHV Engine has been an industry standard for reliability and durability to thousands of people, on thousands of applications. Overhead valve design offers, cooler, fuel-efficient operation and cast iron cylinder sleeve provides longer service life. Vertical shaft engine provides easy maintenance features and electronic ignition. Common applications include commercial turf equipment, lawn tractors and riding mowers.
What’s Included
- (1) Engine
Product ManualKey Specs
| Item# | 44367 |
| Brand | Honda Engines |
| Manufacturer’s Warranty | 3 year limited warranty |
| Ship Weight | 90.0 lbs |
| Engine Displacement | 389 cc |
| Engine Type | GXV Series OHV commercial-duty |
| Net Power Output | 10.2 HP |
| Start Type | Recoil |
| Shaft Diameter | 1 in |
| Shaft Length | 3.11 in |
| Net Torque | 17.8 ft-lbs. |
| Shaft Output | Vertical |
| Shaft Keyway | 1/4 in |
| Shaft End Tapped (Diameter (in.)/Threads per inch) | 7/16-20, UNF2B TAP |
| Shaft Rotation (From PTO Shaft Side) | Counterclockwise |
| Crankshaft | D type |
| Bearing Type | Ball |
| Cylinders (qty.) | 1 |
| Cylinder Bore | Cast iron |
| Compression Ratio | 7.7:1 |
| Cooling System | Air cooled |
| Bore | 3.45 in |
| Stroke | 2.5 in |
| Air Cleaner Type | Dual element |
| Fuel Tank | No |
| Fuel Type | Gasoline |
| Fuel Filter | Yes |
| Oil Capacity | 1.2 qt |
| Low Oil Alert | Oil level switch |
| Low Oil Shutdown | Oil level switch |
| Lubrication System | Pressure/splash |
| Ignition System | Transistorized magneto |
| Governor System | Centrifugal mechanical |
| Carburetor | Float |
| Throttle Control | Remote (rod) |
| Choke Control | Remote (rod) |
| Max. RPM | 3,600 |
| Muffler Included | Yes |
| Auto Compression Release | Yes |
| CARB Approval | Yes |
| Bolt Circle | 10 in |
| Dimensions L x W x H (in.) | 17 x 15 x 15.87 in |
