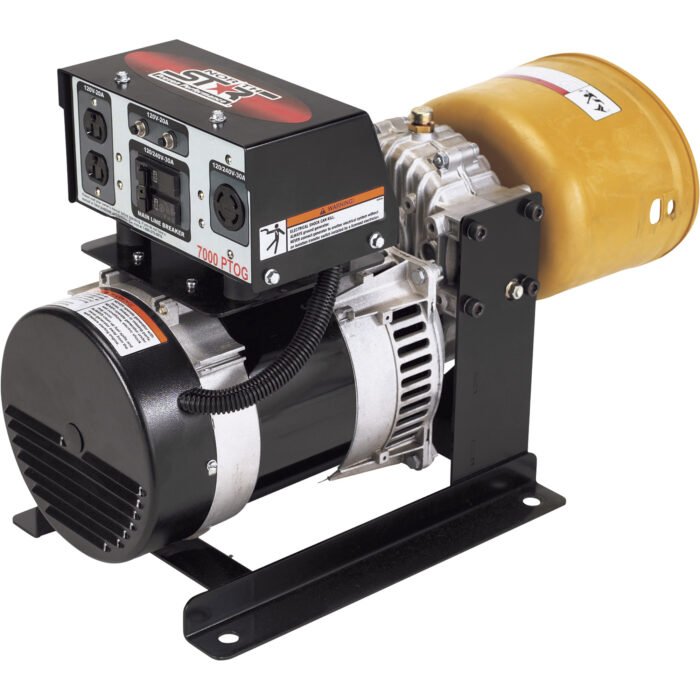

NorthStar PTO Generator — 7800 Surge Watts, 7200 Rated Watts, 14 HP Required

895.00$

Compare
SKU: 165951 Categories: , Tag:
Description

NorthStar® PTO Generator is designed for small tractors to run at 6% or less total harmonic distortion. Less gear noise, longer gear life compliments of the gearbox’s shaved steel gears. Flexible control panel has two 20 Amp, 120 Volt outlets, one L14-30 Amp, 120/240 Volt locking plug receptacle, thermal overload protection provided by thermal magnet 30 Amp circuit breaker and volt meter. Connects to a 1 3/8in. diameter, 6-tooth spline output shaft that needs to turn at 540 RPM.

What’s Included

  • (1) Generator

Product Manual var myPlayer, playerHTML, playerData ={ ‘accountId’:’1845599845001′, ‘playerId’:’rkA4B94h’, ‘videoId’:’ref:northerntool_videos_165951′ }, function addPlayer(){ // dynamically build element playerHTML = ”, document.getElementById(‘placeHolder’).innerHTML = playerHTML, var s = document.createElement(‘script’), s.src = ‘//players.brightcove.net/’ + playerData.accountId + ‘/’ + playerData.playerId + ‘_default/index.min.js’, document.body.appendChild(s), s.onload = callback, } function callback(){ myPlayer = videojs(‘myPlayer’), myPlayer.play(), } { ‘@context’: ‘ ‘@type’: ‘VideoObject’, ‘name’: ‘NorthStar PTO Generator 7800 Surge Watts, 7200 Rated Watts, 14 HP Required’, ‘description’: ‘NorthStar PTO Generator is designed for small tractors to run at 6% or less total harmonic distortion. Less gear noise, longer gear life compliments of the gearboxs shaved steel gears. Flexible control panel has two 20 Amp, 120 Volt outlets, one L1430 Amp, 120/240 Volt locking plug receptacle, thermal overload protection provided by thermal magnet 30 Amp circuit breaker and volt meter. Connects to a 1 3/8in. diameter, 6tooth spline output shaft that needs to turn at 540 RPM.‘, ‘thumbnailUrl’: ‘ ‘contentUrl’: ‘ ‘width’: ‘510’, ‘height’:’300′ }Key Specs

Item#165951
BrandNorthStar
Manufacturer’s Warranty24 months parts / 24 months labor
Ship Weight124.0 lbs
Engine Required14 PTO HP (540 RPM) or more
Shaft Diameter1 3/8 in., 6-spline input shaft is geared for 540 RPM
Rated Watts7,200
Surge Watts7,800
Run TimeContinuous
Receptacles (qty.)(2) 20A, 120V, (1) 30A 120/240V locking
Phase(1) 4 wire
Dimensions L x W x H (in.)25 1/3 x 12 1/2 x 17 1/4
